Laminating Glass

Glass for security and safety

Our Range of Products in This Series

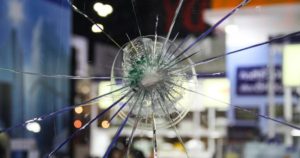

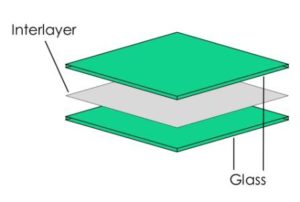

Laminated glass is also a safety glass. A type of polymer layer is sandwiched between two or more layers of glass sheets. At the incident of breaking, it remains in place by that interlayer, generally, the interlayer would be polyvinyl butyral (PVB) or ethylene-vinyl acetate (EVA).

As per the many researches held on the performance of both PVB and EVA found, PVB preforms better.

PVB has very  low yellowness index with high strength compare to EVA. Generally, PVB is highly recommended for laminated glass.

Laminated glass is produced in Jaipur Tuff  by a heat pressure process on the fully automatic laminating line with integrated autoclave, boasts automatic loading and unloading, automatic glass positioning and a fully automatic online control system.

Jaipur Tuff practice world’s topnotch technology in lamination process. Our laminated glass is produced by world class LISEC Lamination line and highly qualified engineers.

Jaipur Tuff Laminated glass lends exceptional Safety and Security with very low visible distortion. It reduces heat, glare and sound while eliminating UV radiations.

Sentryglass has outstanding performance among all glasses, not only in security but in clarity, safety, yellowness index, delamination, open edge performance and many others.

Sr. No.Ionoplast Interlayer SentryGlas® (SGP)PVB Interlayer
1Ionoplast interlayer is an advanced interlayer with different chemistry specially invented for architectural applicationsPVB interlayer was invented by DuPont for the automobile industry in 1930 for windshield applications
2Young’s Modulus @ 30° C, E = 413 MPa
Young’s Modulus @ 40° C, E = 187 MPa
Young’s Modulus @ 80° C, E = 3.96 MPa
SentryGlas® maintains a high Modulus value
as indicated by above values at all temperatures
Young’s Modulus @ 30° C, E = 2.91 MPa
Young’s Modulus @ 40° C, E = 1.83 MPa
Young’s Modulus @ 80° C, E = 0.01 MPa
PVB has very low Modulus value as indicated by above values.
3It is not hygroscopic. It has better edge stability than PVB and can be used for open edge applications provided there is no accumulation
of water.
PVB being hygroscopic in nature absorbs moisture from the environment. It cannot be recommended for open edge applications.
40.89 mm calliper passes the ASTM E2353 – 06 test criteria due to its 100 times higher stiffness SentryGlas® was launched in this minimum calliper for this reason.Minimum calliper required to pass the ASTM E 2353-06 test is 2.28 mm.
50.89mm Callipers can be laminated for Tempered glass as well.A minimum of 1.52 mm calliper is required to laminate tempered glasses.
6Has DIBT approval in Germany and FranceNo approval by DIBT for PVB for . coupling approach
7Has a much better post breakage performance than PVB even at elevated temperatures ( > 40 C) studied through swing bag and drop bag tests. High tear strength provides safety against “Fall Through”Poor post breakage performance and gives a “Wet Blanket ” effect. PVB interlayer tears away at rotules in point fixed glass applications thus not providing any “Fall Through ” resistance.
8It can be used for making tempered laminated safety glass as the interlayer stiffness prevents panel fall out and “Wet Blanket” effect in point fixed applicationsNot recommended in tempered laminated glass applications with point fixings as the interlayer cannot prevent “Wet Blanket” effect. Thus Its use can be limited to annealed or HS glass.
9Yellowness Index is less than 1.5Yellowness Index ranges from 6-12

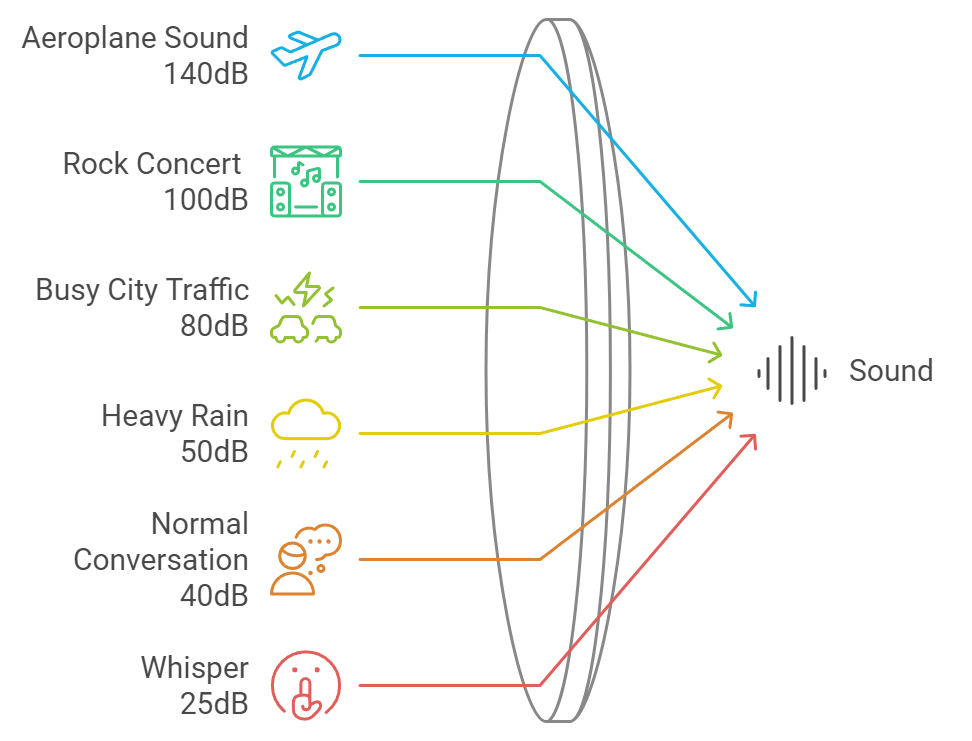

Jaipur Tuff Sound Guard (Acoustic Glass)

Aeroplane Sound
140 Decibels
Rock Concert
100 Decibels
Busy City Traffic Noise
80 Decibels
Heavy Rain
50 Decibels
Normal Conversation
40 Decibels
25 Decibels

Silence... Thanks to glass

Jaipur Tuff Creative (Colored PVB Interlayer)

Because colours and aesthetics matters
