Smart Switchable Glass

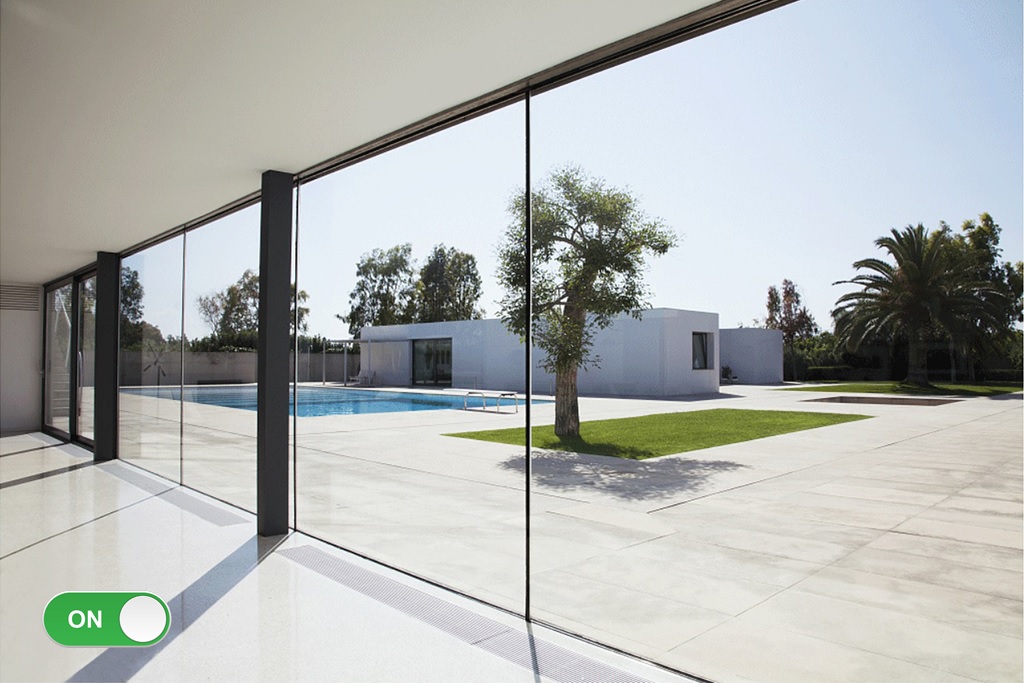

Switchable glass, as its name suggests, is operated by a simple electrical switch, controlling the opacity of the glass from clear to translucent. It can easily be integrated into automation systems too, giving you even more control (Like remote controlling, sensor controlling, Smart devices like Amazon Alexa/Google Do It controlling, Mobile Phone Controlling, etc).
When we apply the electromagnetic field at transparent conductive films, it forces liquid crystals to align in one direction and resultant light start passing through the glass or we can say glass becomes clear.
In the absence of the electromagnetic field, the liquid crystals become random and distort the passing light, resultant glass becomes opaque.
We offer a great range of switchable glass and manufacture the needs of tones of architects, interior designers, retailers, office fit-out companies, glass processors, partitioning firms and more, worldwide. Our smart glass is manufactured using a special factory process i.e. used in bulletproof glass manufacturing by world’s best LISEC Lamination Technology. It does not only provide instant privacy but also some extra features like:
- Security from burglary.
- Solar and thermal insulation.
- UV protection.
- Sound control.
We manufacture the smart glass by using the world-class Lisec automatic manufacturing machinery, that enables not only the accuracy in manufacturing but also great quality.
Secondly, we are the first manufacturer in India of the smart glass and we are only in the world who have achieved haze 3% and light transmittance of 85% in the PDLC film.
Thickness: Customized between 9mm to 30mm
Operation Mode: Power On: Transparent / Power off: Opaque
Max.size: Width: 0-1.5 meters / Length: within 3meters.
Color: White clear, blue, pink, yellow, red, black, etc.
Control mode: Switch control, remote control, voice command control, wifi internet control, cell phone control, long distance control.
UV Block: More than 98%
Sound Control: Upto 36dB
Operating Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉)
Storage temperature: -40℃~ 60℃
Parallel Light Transmittance: 78 ± 2% (On) / 9 ± 1% (Off)
Sunlight Transmittance: 80 ± 2% (On) / 60 ± 3% (Off)
Haze: 5 ± 1% (On) / 92 ± 2% (Off)
Visible angle: 150°
Operating Voltage: 30V/48V /60v AC
Power Consumption: About 5-7W per sqm
Switching Speed: Less than 1 second
Working life: >10 years
Switch times: >2000000 times
Smart Insulating Glass
Inbuilt Venetian Blind, smartly controlled by smart gadgets like Alexa, Google Do It, Mobile Phone, and Remote Controller.
Integrated Venetian Blind Smart Insulating Glass
Smart Venetian Blinds DGU is a type of insulating glass. Where Venetian Blind is sandwiched between two glass units and blinds are controlled by smart devices through voice command or by remote controller. Air space is filled with argon gas that will protect blind and internal electromechanical system from environmental degradation for centuries.
It is a type of Insulating Glass Unit that has inbuilt insulation features like:
In hot climates, the aim is to reduce infiltration of the heat, maintain internal cool temperature and reduce the cost of cooling and vise-versa.
